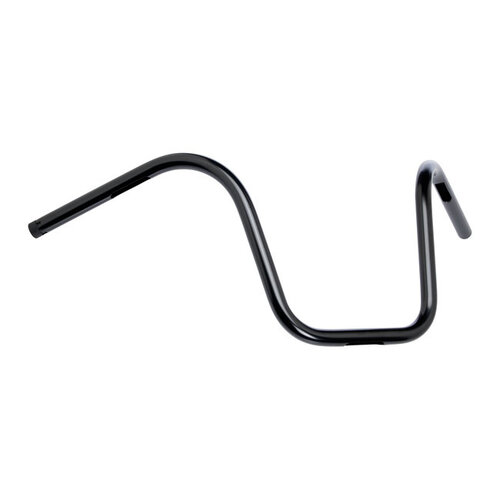

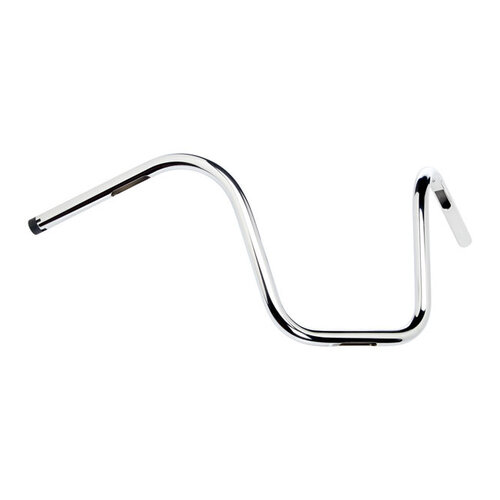

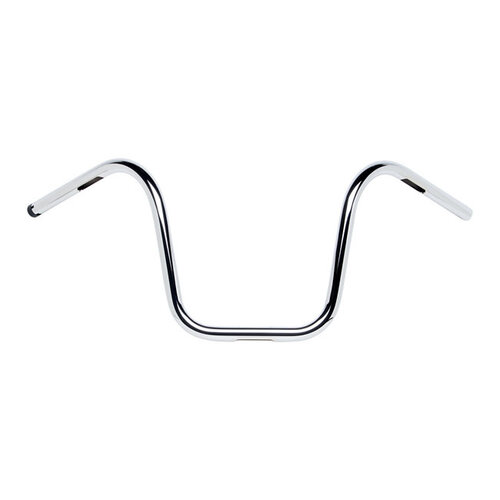

Biltwell 1 Apes Handlebar 12 Rise

Description:

Ape handlebars have a purpose beyond their classic chopper aesthetic, and that is to alter the bike's aerodynamic profile by raising the rider's hands level with or slightly above shoulder height. This increases the front profile going down the highway, which in turn reduces headwind pressure against the rider's chest at higher speeds. It's the same principle as a windshield, without the plastic appendage jutting off the forks. NOTE: Your motorcycle's clutch cable, brake line and/or hand control wires may not be long enough to safely install this bar. Double-check these components before taking the stock bars off your motorcycle.

Specifications:

• For cutting-edge throttle module integration, use satin black and chrome electroplated 4130 seamless chromoly tubing with a 3mm wall thickness and CNC machined slots with an internally tapered bar.

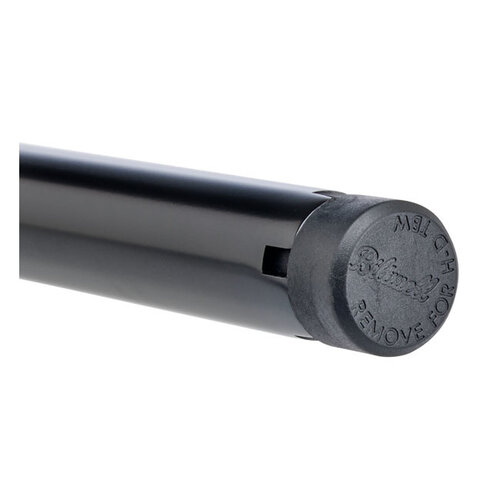

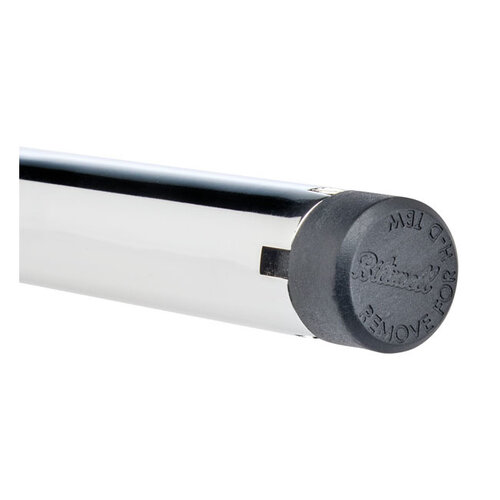

• Note: Compatible with mechanical and electronic throttles (Throttle By Wire). When using e-throttle, the tube end comes with a special (removable) plug to compensate for the shorter throttle (right) side bar length.
• Fits: 82-21 H-D mech. or e-throttle (excl. 88-11 Springers) with 1" I.D. risers

Sizing:

• 24 cm (9-1/2") Rise
• 81,5 cm (32") Width
• 12 cm (4-3/4") Center Width
• 25,4 mm (1") Controls Diameter
• 25,4 mm (1") Handlebar Diameter
• 25,4 mm (1") Clamping Diameter
• 24 cm (9-1/2") End Rise
• 30,5 cm (12") Height
• 16,5 cm (6-1/2") Pullback/Sweep
