Productinformatie
Artikelcode: 31-0207
EAN-code: 7438229466483

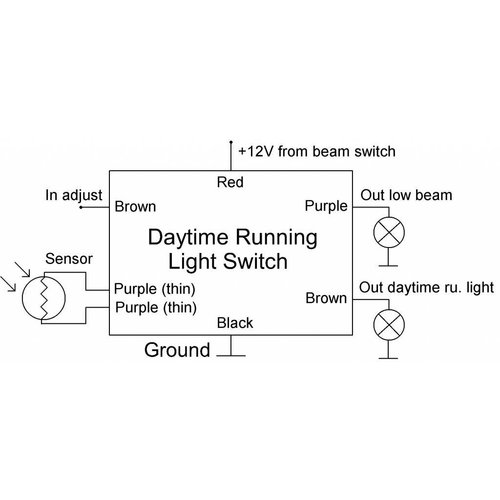

This electronic relay contains 2 power outputs what can drive 60 Watt / each. A daylight sensor detects if the ambient light is dark or bright and the device switch between daytime running light and low beam, depending on the ambience light.

The switch time from daytime running light to the low beam is immediately for situations when you ride from a bright place in a darker place. The switch time from low beam to daytime running light is adjusted to 3 seconds in order to get the light sensitivity down against light reflections. You can adjust and store the trigger value of the ambience light in 60 steps.

Dimensions:
38 mm x 16 mm x 11 mm
Body material:
ABS plastic, water resistant
Sensor:
4,1 mm cell, front surface encapsulated against moisture
Connections:
0,22 mm3 for input, 1 mm3 for power output
Power consumption in operation:
7 mA
Maximum temperature:
 80 degree Celsius
Input voltage range:
7 - 18 Volt
Maximum output power:
2 x 60 Watt, short circuit protected
