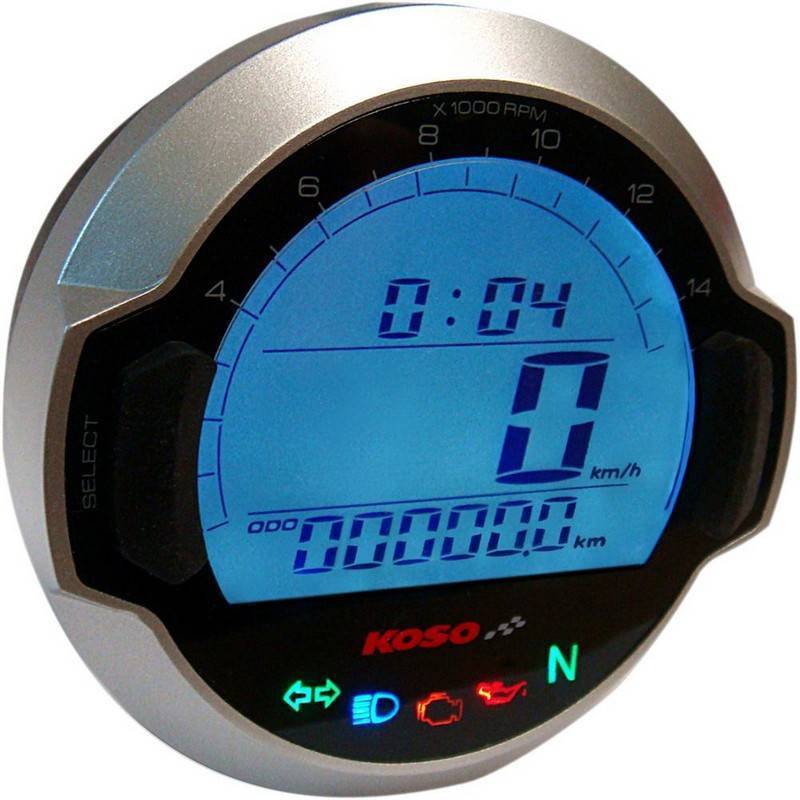

Name: KOSO D64 DL-03SR (silver) Speedometer + Indicator Lights (LCD Display)
Brand: KOSO
SKU: 115-0039
Price: 116.16 EUR
Availability: InStock

D64 DL-03SR (silver) Speedometer + Indicator Lights (LCD Display)

0/5 (0 reviews)

KOSO D64 DL-03SR (silver) Speedometer + Indicator Lights (LCD Display)

€--,--

✔ Immediately Available

Bekijk productinformatie >

Ordered before 19:00, shipped today (working days)
Passion‑Driven, Personalized Service
Extensive Café Racer, Scrambler & Custom Parts Range
Fast, Affordable Pan‑EU Shipping and Transparent Tracking

We are here for you!

Ask your question >

Productinformatie

Artikelcode: 115-0039

EAN-code: 7101128783561

D64 DL-03SR (silver) Speedometer + Indicator Lights (LCD Display)

Function, setting instruction

Speedometer	Display range: 0 ~ 360 km/h (0 ~ 225 MPH) Display unit: 1 km/h (MPH)
Display interval	<0.5 second
Odometer	Display range: 0 ~ 99999.9 km/h (mile), reset automatically after ~ 99999.9 km/h (mile) Display unit: 0.1 km/h (mile)
Trip meter A.B	Display range: 0 ~ 99999.9 km/h (mile), reset automatically after 0 ~ 99999.9 km/h (mile) Display unit: 0.1 km/h (mile)
Fuel / Remaining Distance	Display range: 999.9 ~ 0 km (mile) Display unit: 0.1 km/h (mile)
Tyre circumference	Display range: 300 ~ 2500 mm
	Display unit: 1mm
Tachometer	Display range: 15 levels (Each level represents 1000 RPM)
Fuel Level	Display range: 4 levels (The fuel symbol begins to flash if only 1 level is left.)
Fuel resistance	Setting range: 100 ohms, 250 ohms, 510 ohms, 1200 ohms
Clock	24 H
Digital Voltmeter	Display range: DC 5 ~ 24 V, Flashing Warning when Voltage lower than 8V or higher than 18V.
Voltmeter	Display range: 4 levels Display unit: 1 level (Low) - DC 11.6 ~ 12.0 V 2 level - DC 12.1 ~ 12.5 V 3 level - DC 12.6 ~ 13.0 V 4 level (High) - DC 13.1 V
Insufficient volt warning	Voltage level begins to flash when only 1 level left
Backlight brightness adjustment	Setting range: 1-5 (Darkest) ~ 5-5(Brightest) Setting unit: adding 20 % each adjustment (5 segments)
Effective voltage	DC 12V
Effective temperature range	-10 ~ +60°C
Meter standard	JIS D 0203 S2
Meter size	135.7 X 100.7 X 52 mm
Meter weight	Around 240g
Indicator light colour	High beam - blue Turn signal - green Oil - red Neutral - green EOBD light - Amber
