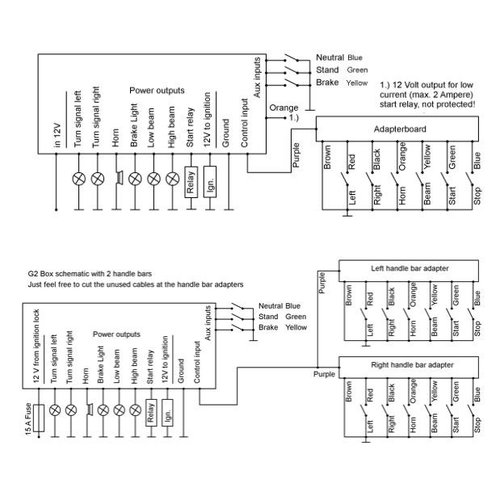

Elektronic box version G with handle bar adapter.
The G-Box is available with 1 handle bar adapter (G), or with 2 handle bar adapters (G2). It controlls the main electrical functions with push buttons on your motorcycle.
The Electronicbox provides the following functions:
- Lightcontrol with switch and pushbutton possible
- Control of flasher
- Emergency flash function
- 2 x flashes when ignition on
- Flasher function with automatic off
- Control of horn
- Control of starter relais
- Control of engine stop function possible with 1 or 2
- Alarm switch input
- Brake light control
- Control from neutral - and stand switch possible.
- 8 Status LEDs on the cable side for an easy and fast wiring check.
An adapter in the handle bar will be connected to the push buttons and a thin single cable connects the adapter to the electronicbox. 8 status led, connected to the outputs allow an easy installation and control. The most functions can be changed without problems from the user. Just hold the horn button while switching on the 12V and the box is in the programm mode after release the button. A short flash will indicate this status. You can change the function with pressing the left or right indicator button. You change to the next programm mode with an additional press on the hornbutton. the indicators will flach 2 times in order to show you the status. The following options are possible: The most functions can easily be changed by the user. Just hold the horn button while switching on the 12V and the box is in the programm mode after release the button. A short flash will indicate this status. You can change the function with pressing the left or right indicator button. The indicators will flash 2 times in order to show you the new program option. The following options are possible:
- Button Left
- Button Right
1 x Showflasher Off On
2 x flasher when switching on
2 x Comfortflasher Off On Indicators will switch off after 20 x
3 x Drive light Off On Indicators with 20 % brightness if off
4 x Breake Light Off On Brake light with 50 % brightness if off
5 x Start/Stop buttons 1 Button 2 Button 1 or 2 Button for Start /Stop
6 x Stand/Neutral. Off on Side stand and neutral switch active
The functions are written in the E-Eprom and can be changed anytime. Please note that you need to switch off the box for minimum 3 seconds in order to discharge the internal capacitors before you can change the settings again.
Box: 50 mm x 42 mm x 12 mm
Adapter: 35 mm x 15 mm
Polycarbonat, waterproof potted with epoxy resin
0,5 mm³ for input, 1 mm³ for power output
Power consumption in operation:
20 mA due to the implemented led
120 degree Celsius
Input voltage range:
6 - 13,8 Volt, temporary up to 20 Volt
Maximum current of the 12V ignition connector:
