DB03-R Multi Function Motorcycle Digital Dash Cockpit
KOSO

DB03-R Multi Function Motorcycle Digital Dash Cockpit

The Koso DB03-R Multi Function Motorcycle Digital Dash Cockpit is the perfect fit for any street bikes. It has a blue backlight that makes it very easy to read at night even at high speed. The integrated indicator lights does provide all the necessar...
Add your review
thubmnail
thubmnail
thubmnail
thubmnail
€--,--
⏳2-4 business days
Description

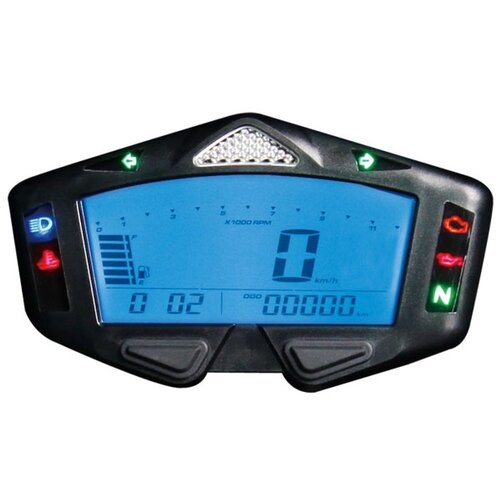

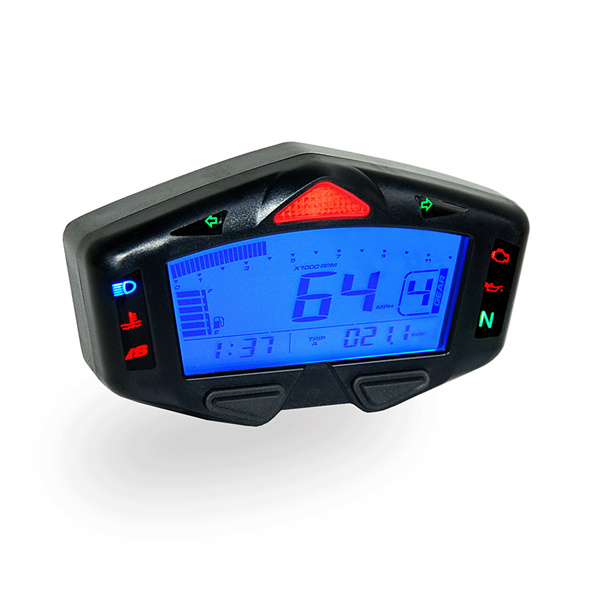

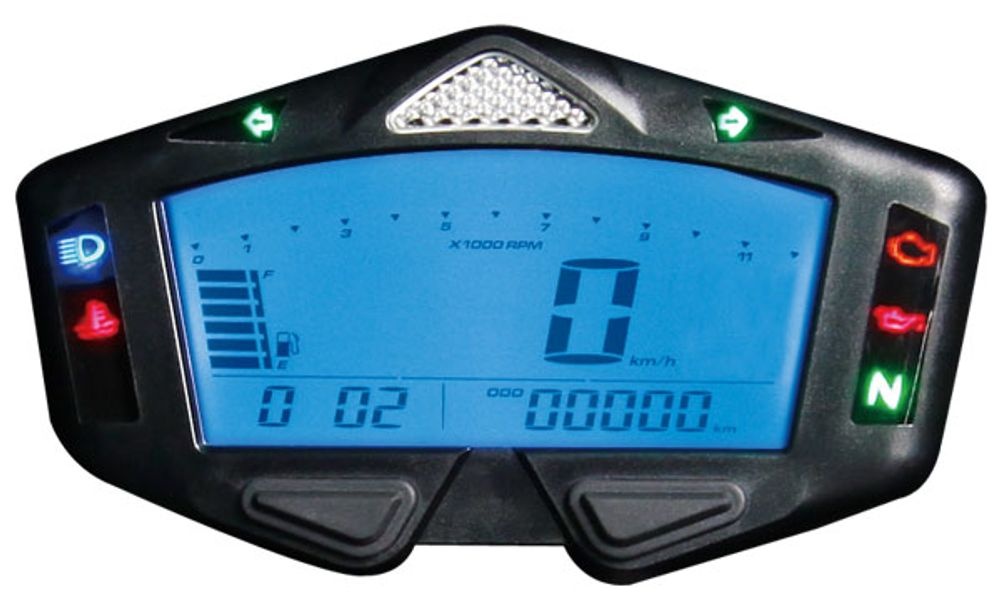

The Koso DB03-R Multi-Function Motorcycle Digital Dash Cockpit is the perfect fit for any street bikes. It has a blue backlight that makes it very easy to read at night even at high speed. The integrated indicator lights does provide all the necessary information for any street use. The changeable RPM scale allows this gauge to fit about any engine applications.

This instrument also features a gear indicator and shift light which will allow you to shift in the perfect gear. Beside those great functions, the DB-03R features: Speed, odometer, trip meter, RPM, temperature, volt, fuel level, and a lot more!

  • Speedometer Display range: 0~360 km/h (0~225 MPH) Display unit: km/h or MPH
  • Display internal
  • Odometer - Display range: 0~99999 km (mile), reset automatically after 99999 km (mile) Setting unit: 100 RPM
  • Trip meter A/B - Display range: 0~999.9 km (mile), resets automatically after 999.9 km (mile). Display unit: 0.1 km (mile).
  • Total hour meter - Display range: 0~99999 H. Display unit: 1 H.
  • Hour meter A.B - Display range: 0.0~999.9 H. Display unit: 0.1 H.
  • Tyre circumference   Setting range: 300~2,500 mm Setting unit: 1 mm, Sensitive point: 1~20
  • Tachometer - Display range: 0~10,000 / 0~12,000 / 0~15,000 RPM.
  • Display unit:
  • 10,000 RPM-Each level represents 166 RPM,
  • 12,000 RPM-Each level represents 200 RPM,
  • 15,000 RPM-Each level represents 250 RPM
  • The RPM Red, Yellow - Setting range: 1,000~15,000 RPM shift light Setting unit: 100 RPM
  • Warning - Light on (F-OFF) Flash (F-ON)
  • MAX RPM record - Display range: 0~10,000 / 0~12,000 / 0~15,000 RPM
  • The RPM input signal number setting - Setting range 0.5, 1~24
  • The RPM input pulse - Setting range: HI (The positive wave pulse) Lo (The negative wave pulse)
  • Temperature unit - Display unit: ºC or ºF
  • Thermometer - Display range: 0.0~250.0°C (32.0~482.0°F) Display unit: 0.1°C (°F)
  • Over temp warning - Setting range: 60~250°C (140~482°F)
  • (Water temperature) - Setting unit: 1°C (°F)
  • Top temperature record - Display range: 0~250°C (32~482°F)
  • Fuel meter - Display range: 6 levels Display unit: Each level represent 16.6 % Setting range: 100ohm, 250ohm, 510ohm, 1200ohm, SW
  • Clock - 24 H
  • Voltmeter - Display range: DC 8~18 V. Flashing warning when Voltage lower than 11.5 V or higher than 15.5 v.
  • Backlight brightness Setting range: 1-5 (Darkest)~5-5 (Brightest) Display unit: Each level represents 20 %
  • Backlight colour - Setting range: blue, orange, light purple
  • Effective voltage - DC 12V
  • Effective temperature range  -10~+60°C (14~+140°F)
  • Meter standard - JIS D 0203 S2

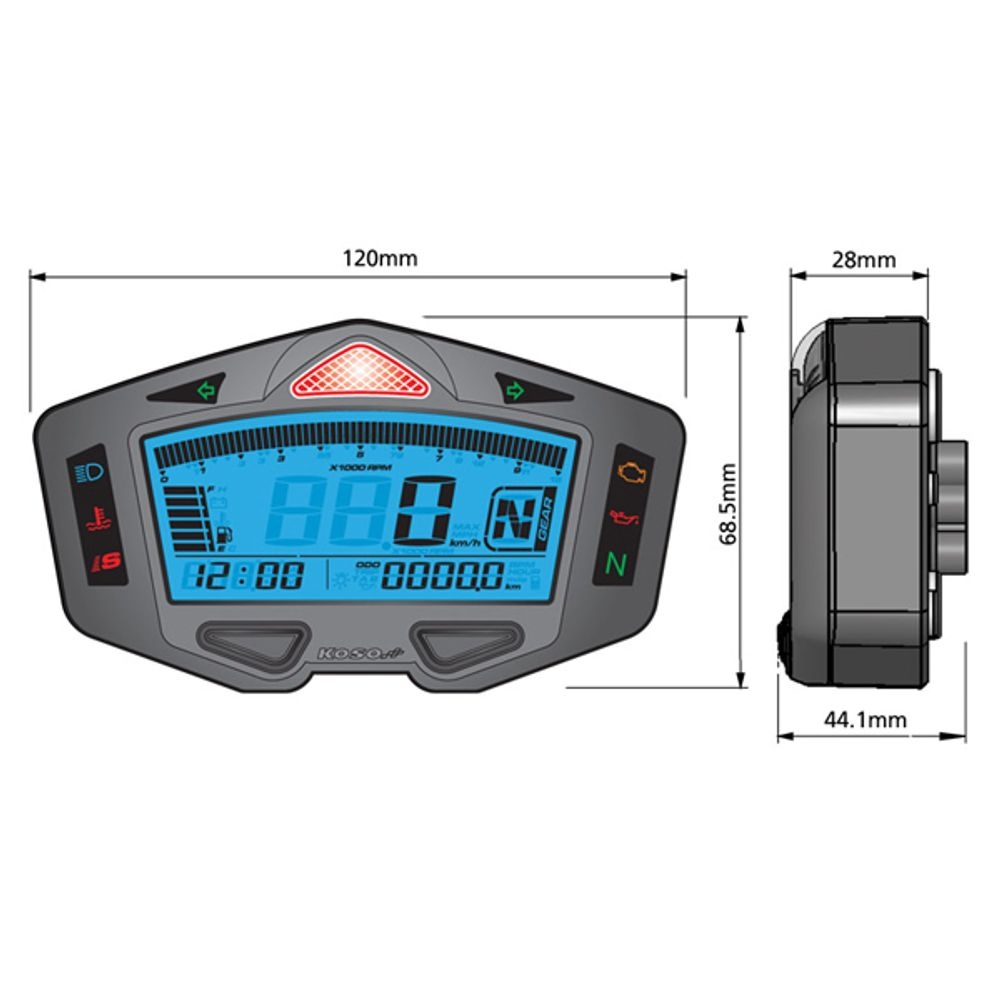

  • Meter size - 120 X 68.5 X 44.1 mm
  • Meter weight - Around 127.3 g
  • Indicator light colour - Neutral-green, High beam-blue, Repeater-green, EOBD-amber, Oil-red, Temperature alarm-red, RPM shift light (Red, Yellow)
  • Sensor type - Passive speed sensor: BF019005
  • Gear Meter - Display range : N, 1, 2, 3, 4, 5, 6, 7, 8, 9
